Lazrostics is a team of Biomedical Engineering (BME) students dedicated to tackling post-surgical complications associated with the treatment of esophageal cancer. Under the mentorship of Dr. Bernard Choi, Dr. William Tang, and Dr. Marc Fawaz, this project aims at developing the next generation endoscope that is capable of providing the end user with a standard white-light view and a novel blood-flow sensing view. Sufficiently detailed real-time images of blood flow patterns beneath the surface of the target under examination could provide valuable information about the health or disease states of the tissues. This will address the need to monitor tissue blood perfusion in the esophagus after an esophagectomy (described in next section). Our device will provide clinicians a new way to monitor and detect ischemic anastomosis.

The Problem

Esophagectomy

In 2012, there were about 456,000 new diagnoses of esophageal cancer worldwide with predicted deaths being 400,000 patients and the cancer carries a 5-year survival rate of 20 percent. Esophagectomy is a complex surgical procedure that removes the cancerous sections of the esophagus, where the two ends are then sutured back together with the bottom portion overlapping the top called an anastomosis.

Diagnostic Complications

Post-surgical complications includes leaks, which occur when the two sutured ends give way, causing leakage which can lead to reduced blood flow and septic shock. Esophogeal leakage rates can occur at 3-25% of all esophagectomies and carry a mortality rate of 30-60%.

Clinical Unmet Need

Current detection methods for anastomotic leaks include CT scans and traditional endoscopes. Downsides of CT scan involves heavy radiation and injection of harmful dyes that are associated with long-term negative effects, while traditional endoscopes can only evaluate tissue appearance but not blood flow. Due to the high mortality rate associated with post-surgical complications in the treatment of esophageal cancer and the limited capabilities of current detection techniques, it becomes critical to develop a device capable of sensing real-time blood flow in a minimally invasive manner.

Product

Concept Design

A typical endoscope shines a white light that reflects off the target and to be captured by the camera which sends the image to a viewing monitor. In contrast, the ELSI uses a red laser to illuminate the target. The interference pattern of the laser, created when it interacts with the tissue, is captured with the camera located in the endoscope tip. The captured data is then processed using MATLAB to present blood flow information on a viewing monitor

The ELSI

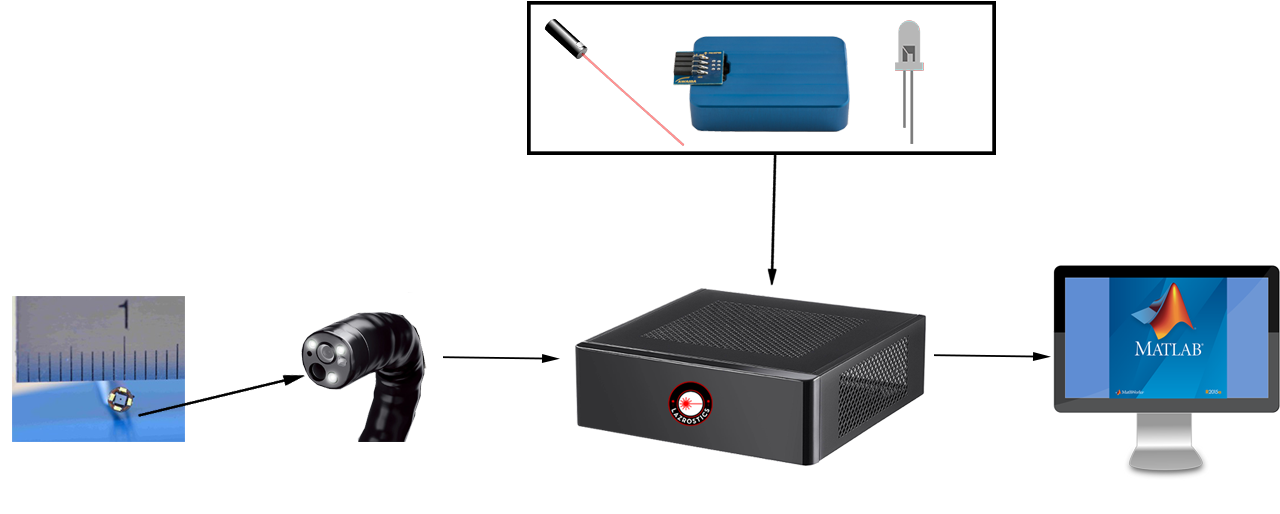

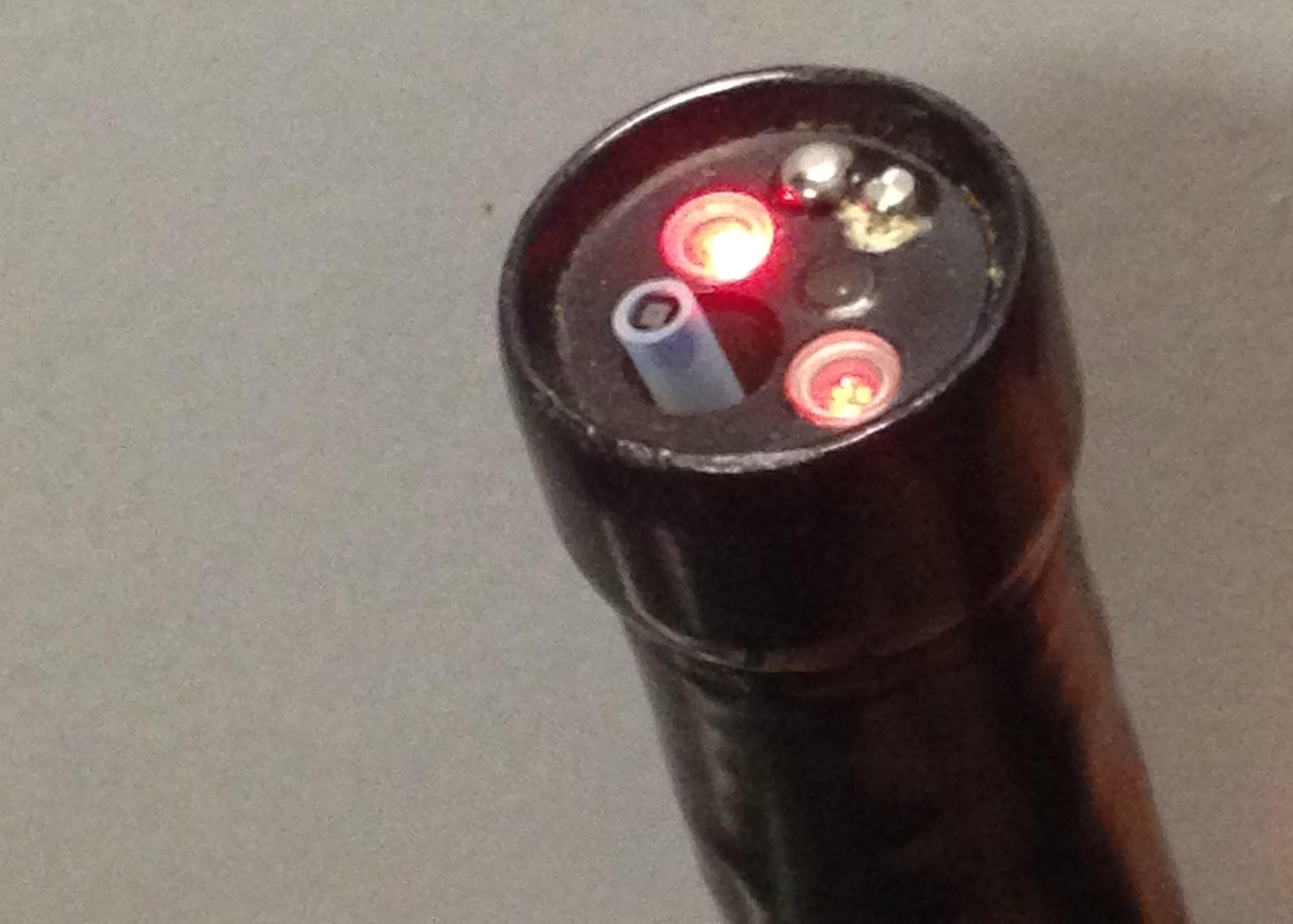

Our device is called the Endoscopic Laser Speckle Imager(ELSI), which is made up of several components such as a tiny camera that is placed in an endoscope tip, a red laser, a white LED, a data acquisition board, and a computer to process data. The laser, LED, and data acquisition board are placed into a housing case which is machined to our specifications. Our device will have the option to toggle between laser source and white light allowing us to acquire laser speckle and raw imaging respectively.

Device Testing

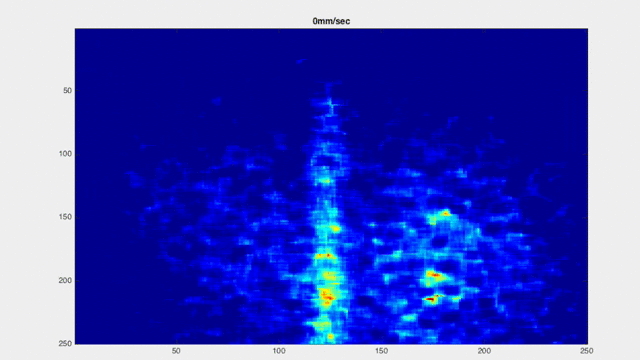

During development of a working prototype, our product needed to go through a series of flow phantom experiments and restricted blood flow tests. The flow phantom test is made up of different components that have similar optical properties to the skin and of red blood cells to simulate blood flow in vitro. When fluid is pumped through the phantom, our device should be able to detect the different flow speeds up to 5 mm/sec. If the speckle flow map is seen as too dark, the problem would be with the red laser illumination or environmental setup. For the restricted blood flow test, a finger on a test subject’s hand will have a rubber band to restrict blood flow where the colormap for the finger should appear blue. Finally, it will become necessary to test our product on porcine models to understand the efficiency in vivo.

As a control, a CCD camera and external laser source are used together to visual blood flow on the flow phantom. This control experiment allows confirmation of the efficiency of the matlab software and provides a baseline for our miniature camera/red laser experiment. Our device’s laser speckle image map must be similar to ones that are shown using the CCD camera for further development and modifications of the device.

Our prototype demonstrates that adding blood flow sensing capabilities via a miniature camera has to potential to be a viable alternative to traditional methods of blood flow sensing. Through in vivo testing the prototype was able to distinguish between various flow rate accurately and in real time.These features demonstrate the device’s potential for numerous medical procedures and is not limited to post-surgical ischemic anastomosis. To maximize our ability to be competitive in this market, our prototype needs to become more condensed and robust.

Market Analysis

Customers

Since our patient populations are those who undergo esophagectomies (esophogeal surgery), our customers are facilities providing post-surgical care, such as hospitals, clinics, and primary care offices. Our device is designed to be used in any endoscopy procedure. Rising investments, funds, and grants by governments and hospitals worldwide for endoscopy equipment has increased the endoscope market size. In 2016, North America is placed as the largest share of the endoscopy equipment market; however, the Asia-Pacific market is projected to grow at the highest compound annual growth rate (CAGR) and will be a major revenue pocket for companies offering endoscopy equipment.

Projected Plan

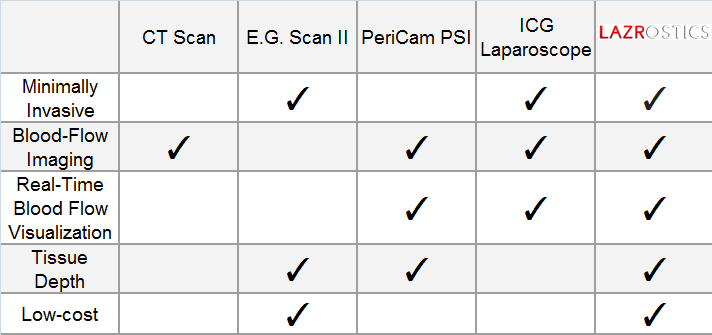

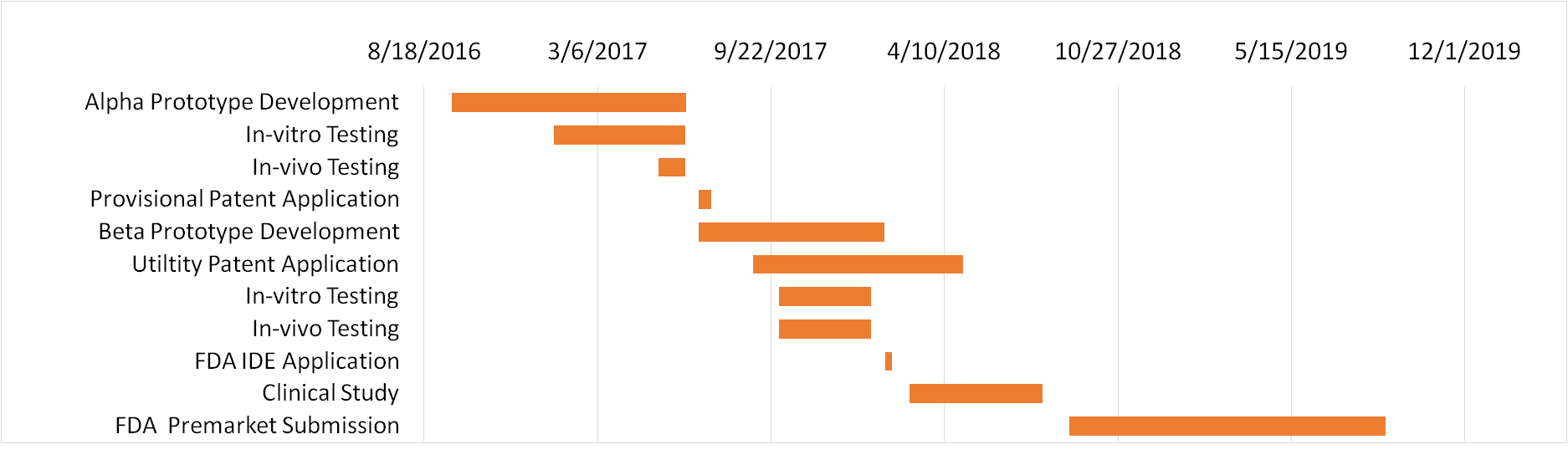

The endoscope market is predicted to exceed $30 billion by 2020. After we have developed a working prototype, we will apply for the NIH Small Grant Program (R03) of up to $50,000/year to fund our verification and validation research. Since the EG SCAN II and PeriCam PSI are our predicate devices, duration of the FDA approval process will be much shorter. After gaining FDA approval, we will start a pilot production of 100 units, which we project to cost about $3,000 per device, which we will sell for $10,000. Considering that every diagnostic endoscopy procedure is reimbursed by Medicare at around $500 in-office and $1000 in an outpatient hospital, our device is cost-effective to our customers.
